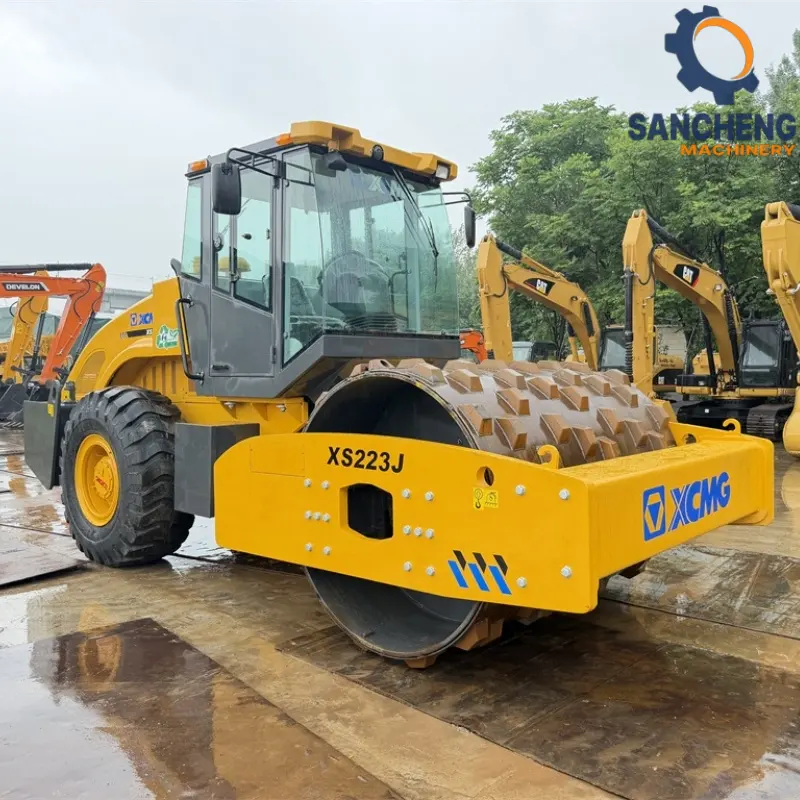

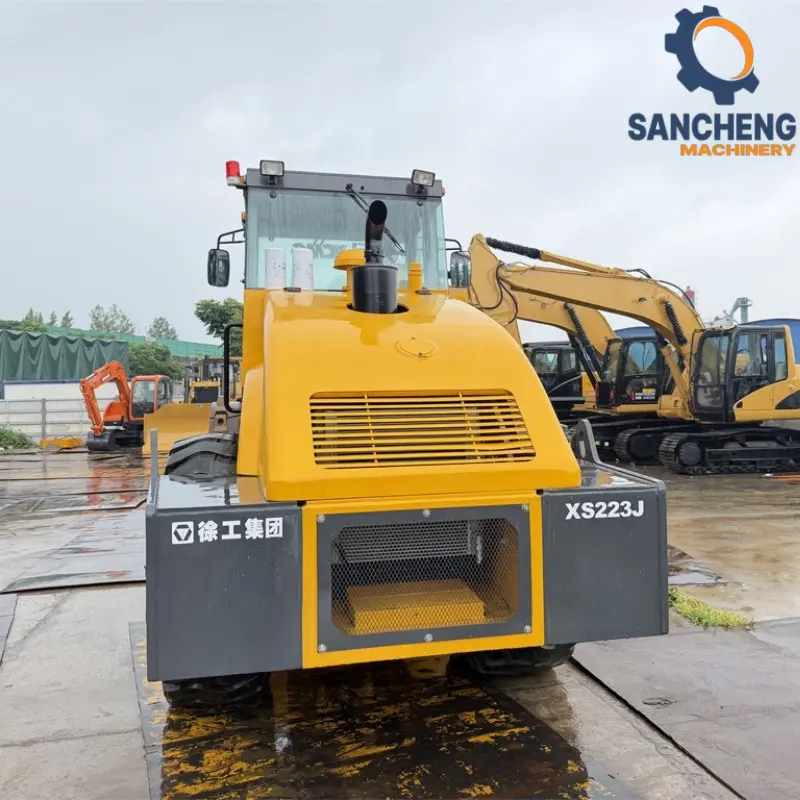

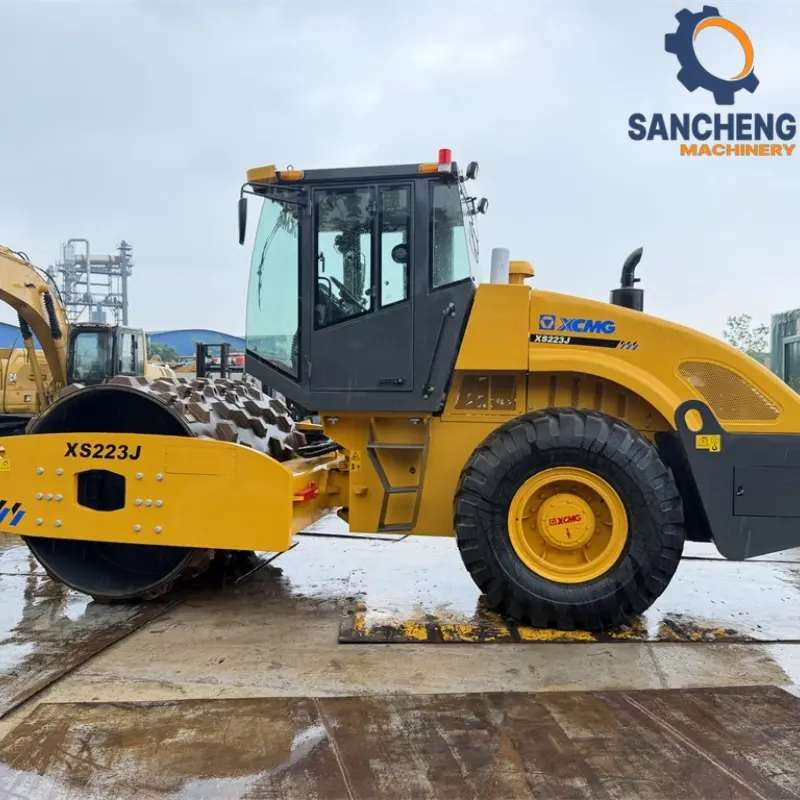

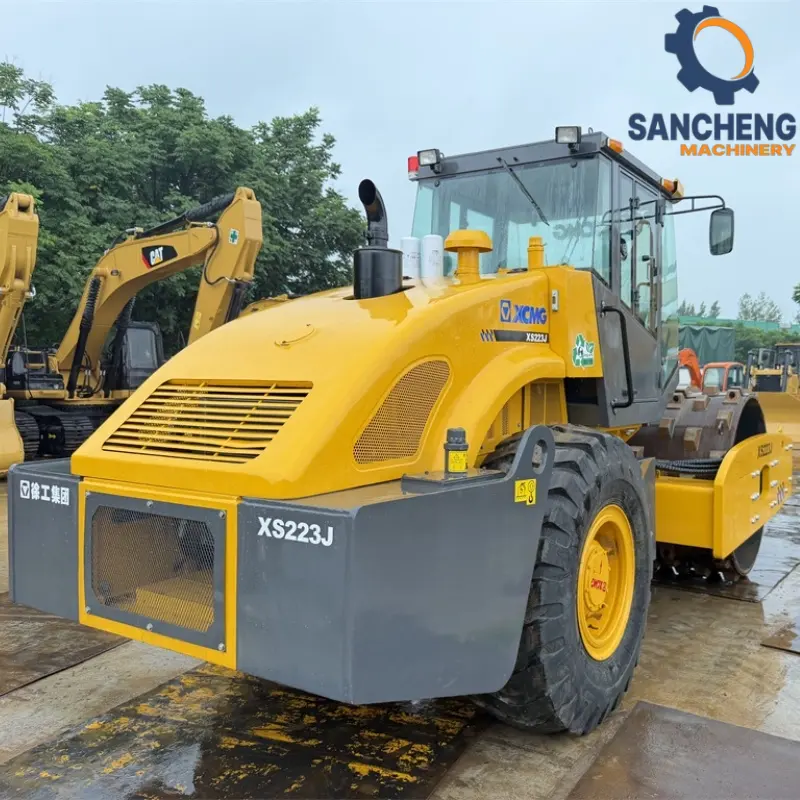

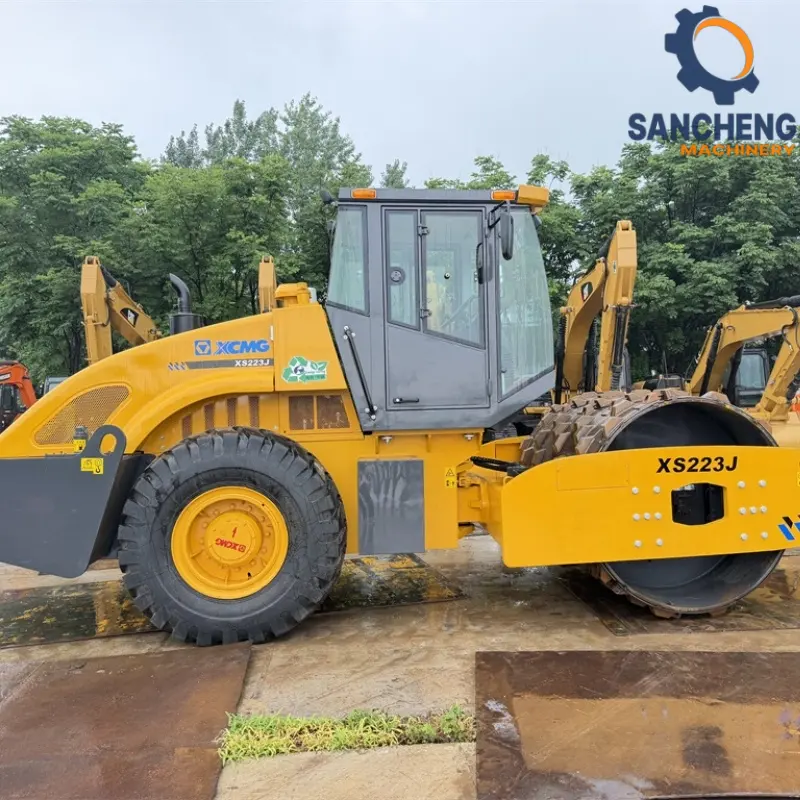

| XCMG XS223J with Padfoot Shell | (Sheepsfoot Roller) Specifications |
| 1. General Specifications | |
| Operating Weight | 22,000 kg |

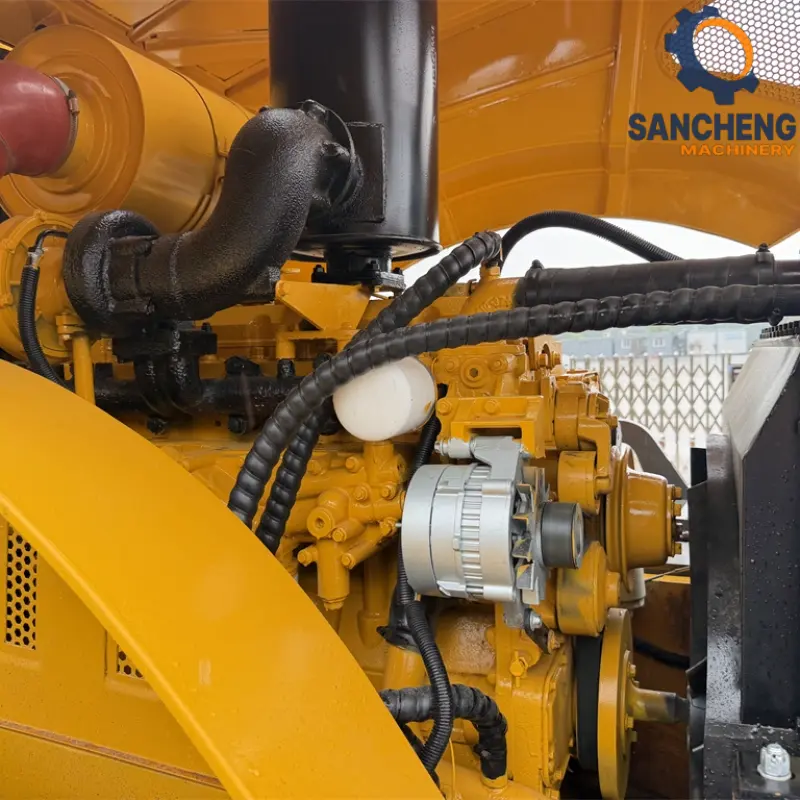

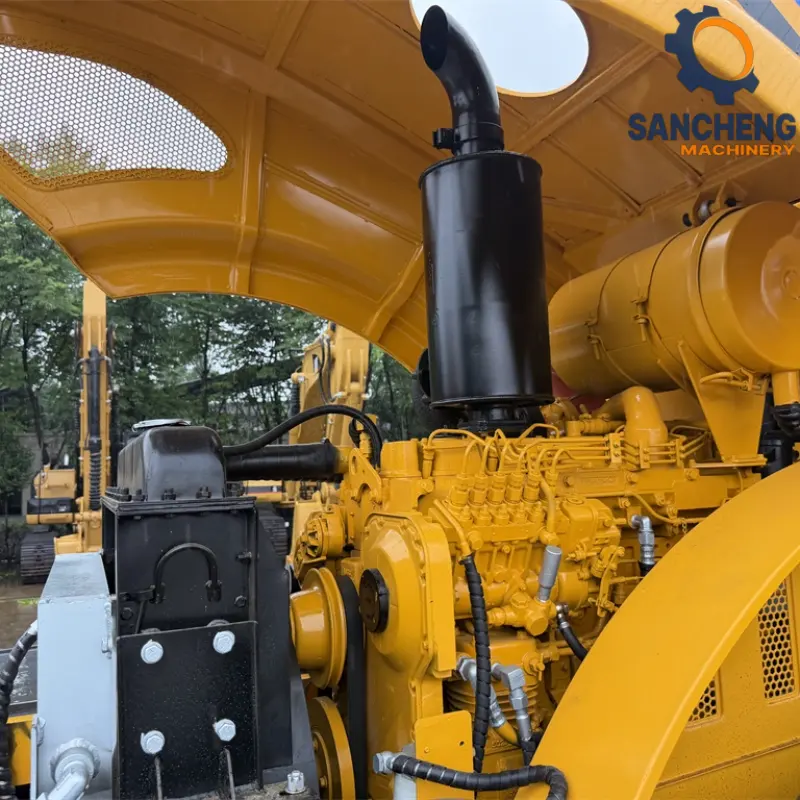

| Engine Model | Shangchai SC7H190.2G3 |
| Rated Power | 140 kW / 1800 rpm |
| Drive Type | Mechanical Drive, Hydraulic Vibration |
| 2. Performance | |
| Travel Speed (High/Low) | 9.4 / 2.95 km/h |
| Gradeability | 30% |
| Min. Turning Radius | 6,500 mm |
| 3. Dimensions | |
| Overall Length | 6,320 mm |
| Overall Width | 2,390 mm |
| Overall Height | 3,200 mm |
| Wheelbase | 3,230 mm |
| Min. Ground Clearance | 440 mm |
| 4. Compaction Parameters | |
| Vibration Frequency | 28/33 Hz |
| Nominal Amplitude | 1.86/0.93 mm |
| Centrifugal Force | 374/290 kN |

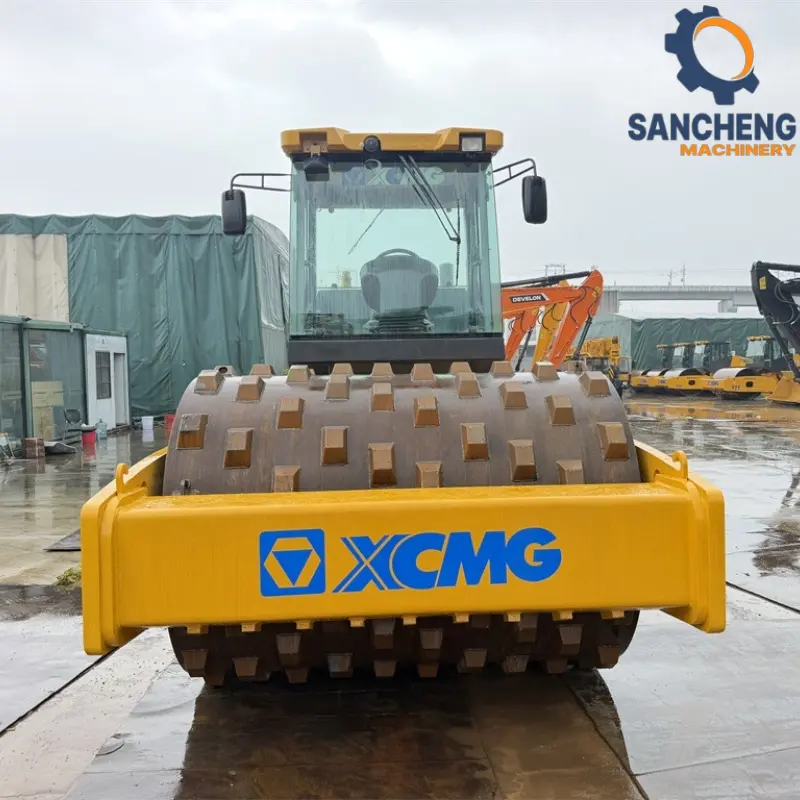

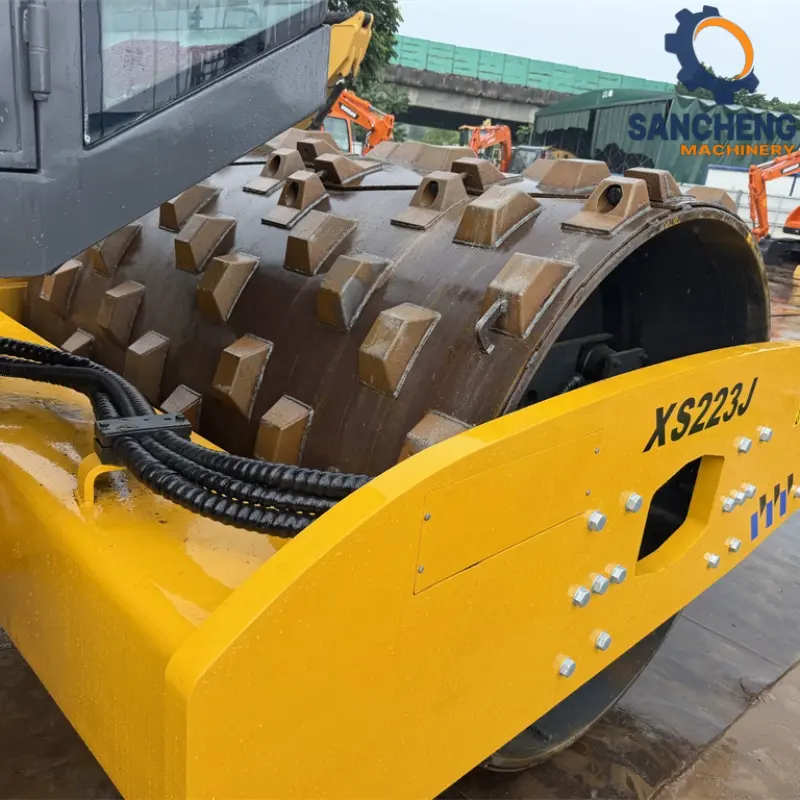

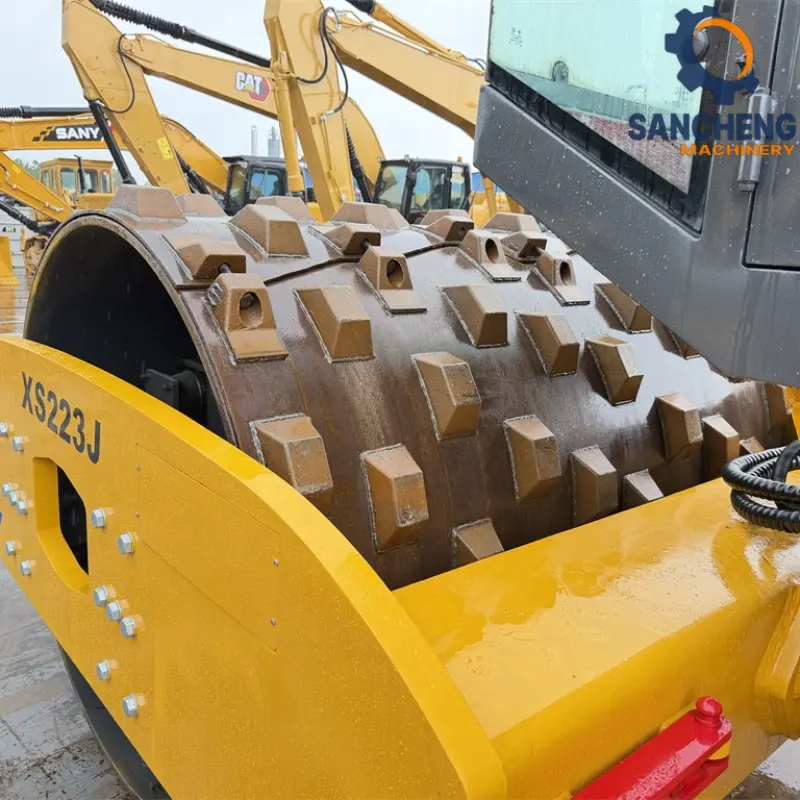

| Drum Diameter | 1,600 mm |
| Drum Width | 2,130 mm |
| 5. Capacities | |
| Fuel Tank | 300L |
| Hydraulic Tank | 120 L |
