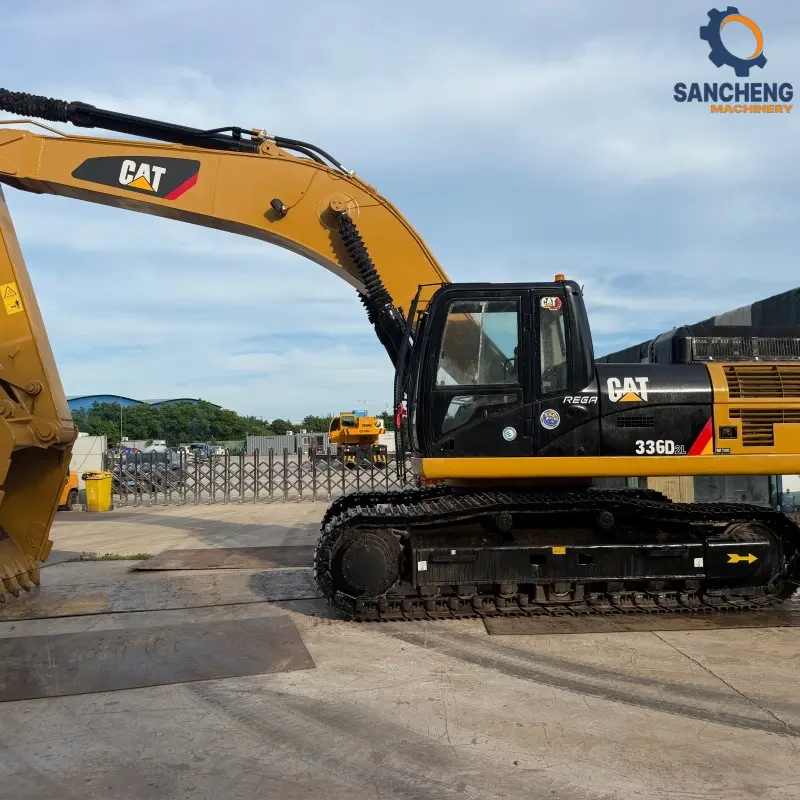

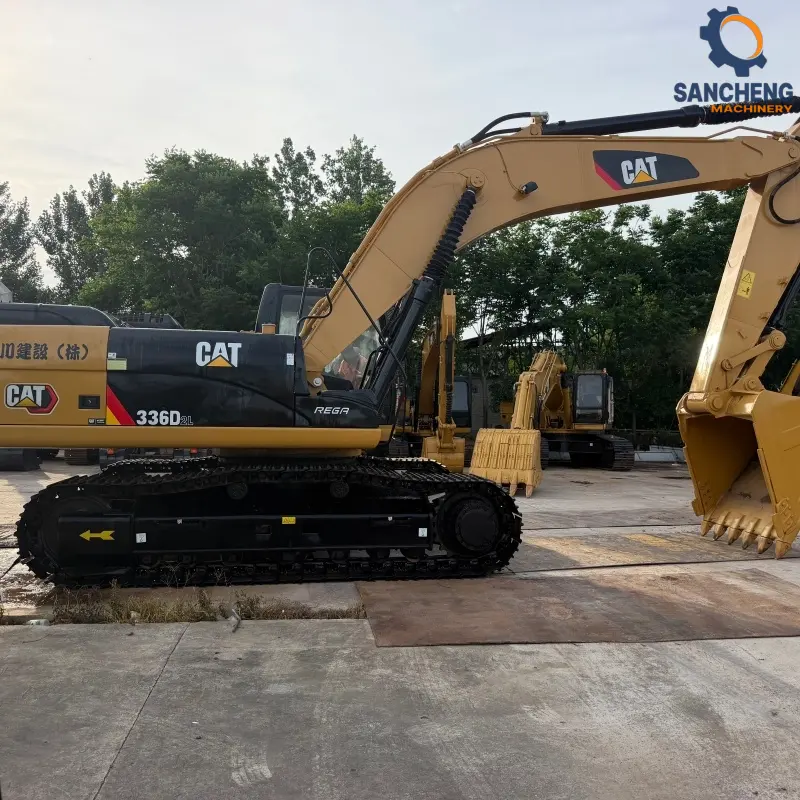

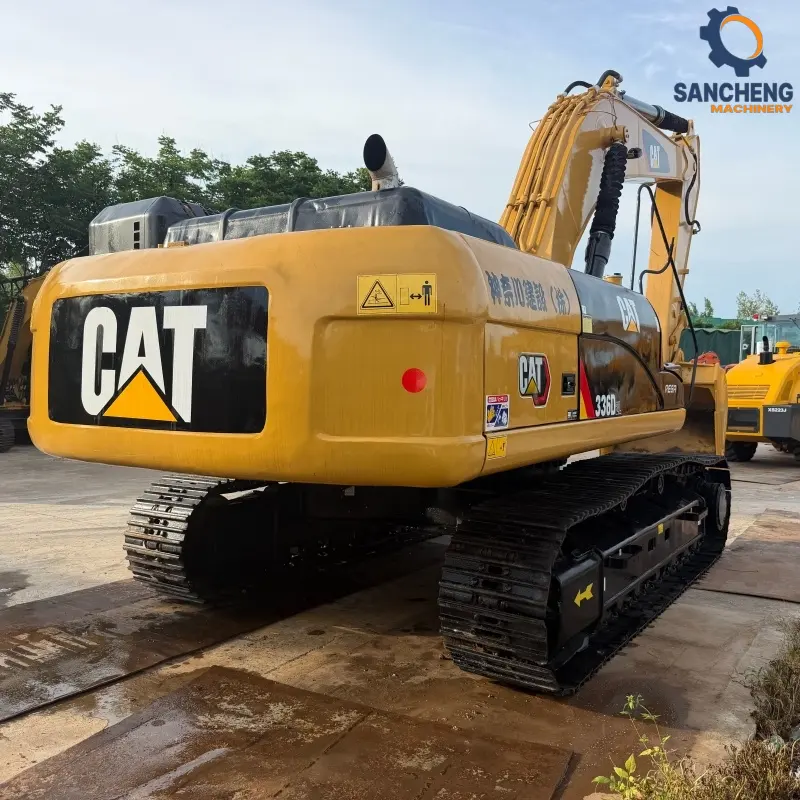

CAT 336D2L Specifications

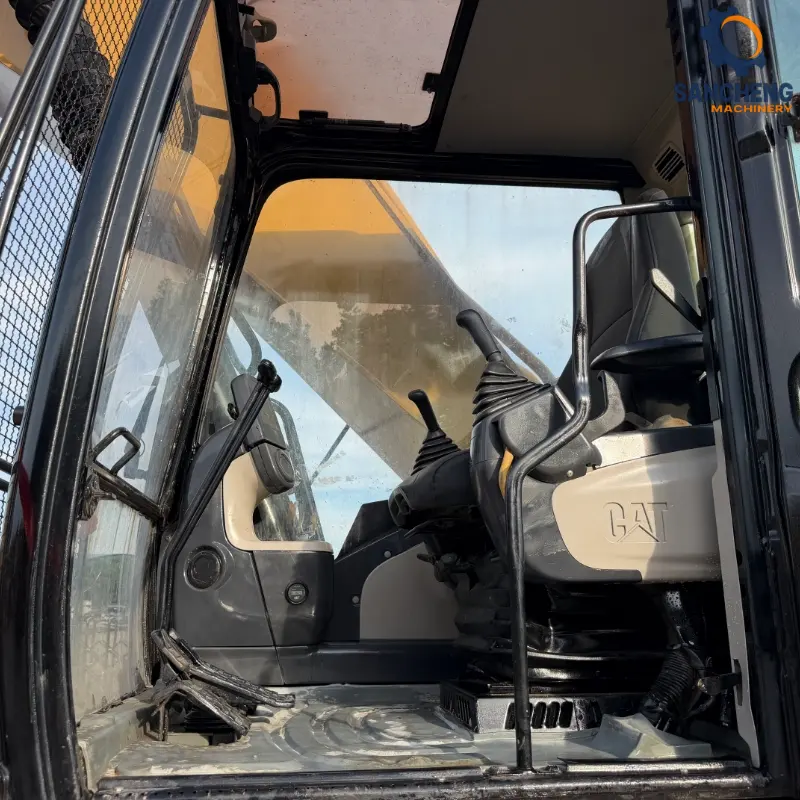

The Caterpillar 336D2L is a highly productive 36-metric-ton hydraulic excavator designed for demanding heavy-duty construction and mining projects. Powered by the reliable Cat® C9 ACERT™ engine delivering 209 kW (280 HP), it offers exceptional fuel efficiency and durability. The advanced hydraulic system provides superior digging and lifting forces, while the spacious, ergonomic cab ensures maximum operator comfort and safety. Built with robust structures and versatile performance, the 336D2L is the ideal choice for maximizing your job site productivity.
Parameters
| 1. Engine & Power | |

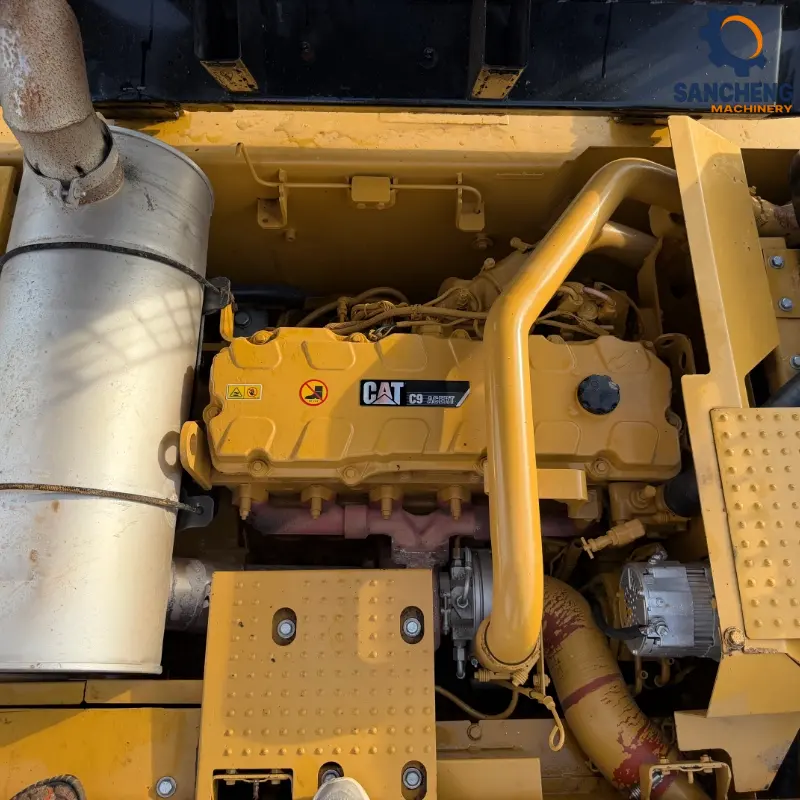

| Modèle de moteur | Cat® C9 ACERT™ |
| Net Engine Power | 209 kW (280 HP) |
| Cylindrée du moteur | 8,8 L |
| Capacité du réservoir de carburant | 620 L |
| 2. Weights & Dimensions | |
| Poids opérationnel | 34,600 kg |

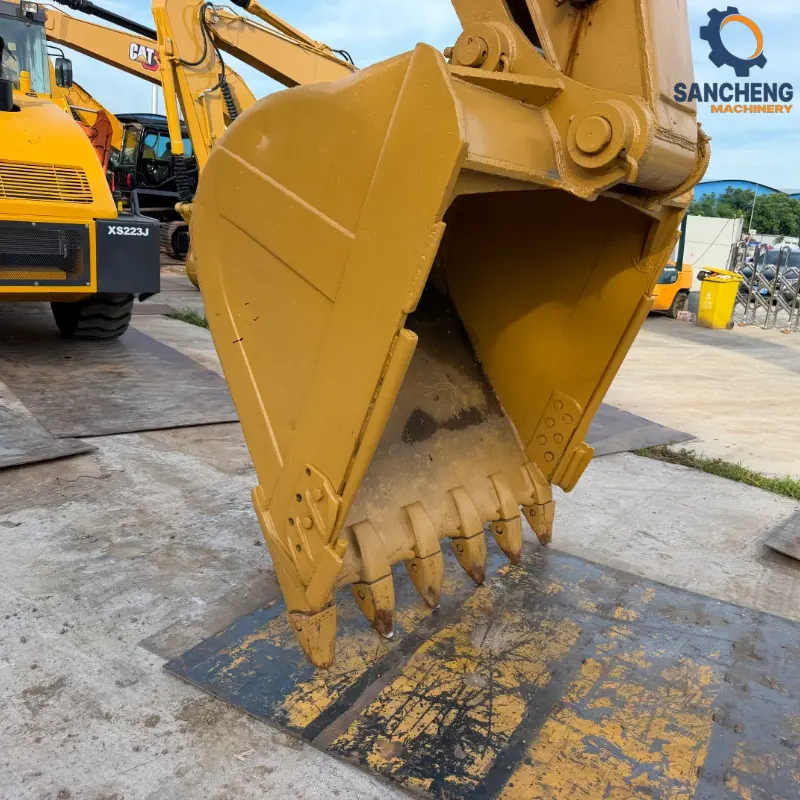

| Capacité du seau | 1.88 – 2.41 m³ |
| Longueur de transport | 11,200 mm |
| Largeur de transport | 3,620 mm |
| Hauteur de transport | 3 530 mm |
| 3. Performance | |
| Vitesse de déplacement maximale | 4.6 km/h |
| Vitesse de swing | 8.98 rpm |
| Max. Drawbar Pull | 300 kN |
| Évaluabilité | 70% (35°) |
| 4. Hydraulic System & Working Ranges | |
| Profondeur de creusement maximale | 7,590 mm |
| Hauteur de creusement maximale | 10,250 mm |
| Hauteur de déversement maximale | 7 000 mm |

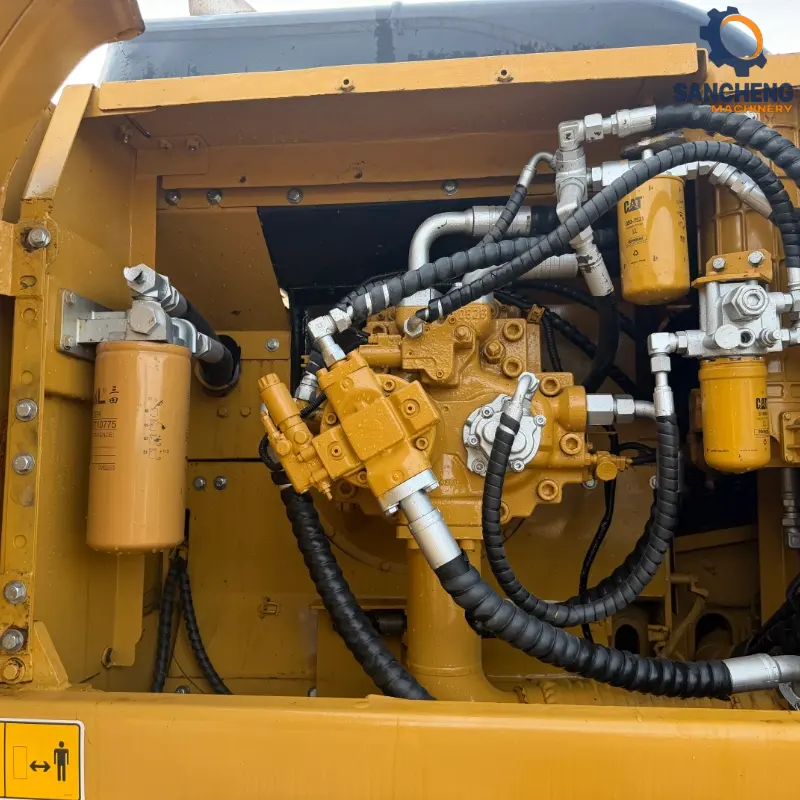

| Débit maximal de la pompe principale | 281 L/min |
| Max. Operating Pressure | 35 MPa |
