| Specifications | |

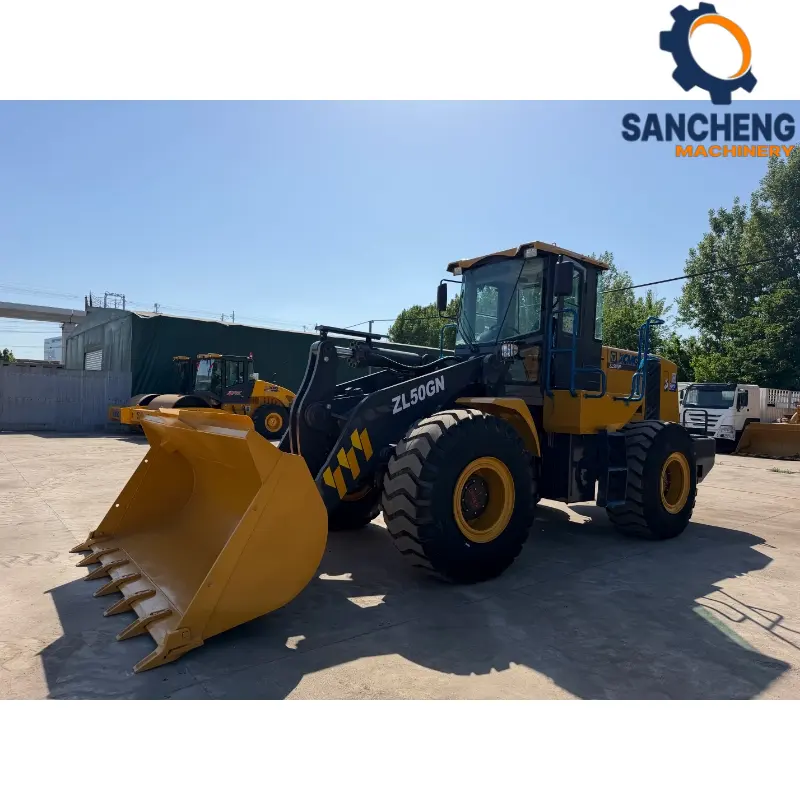

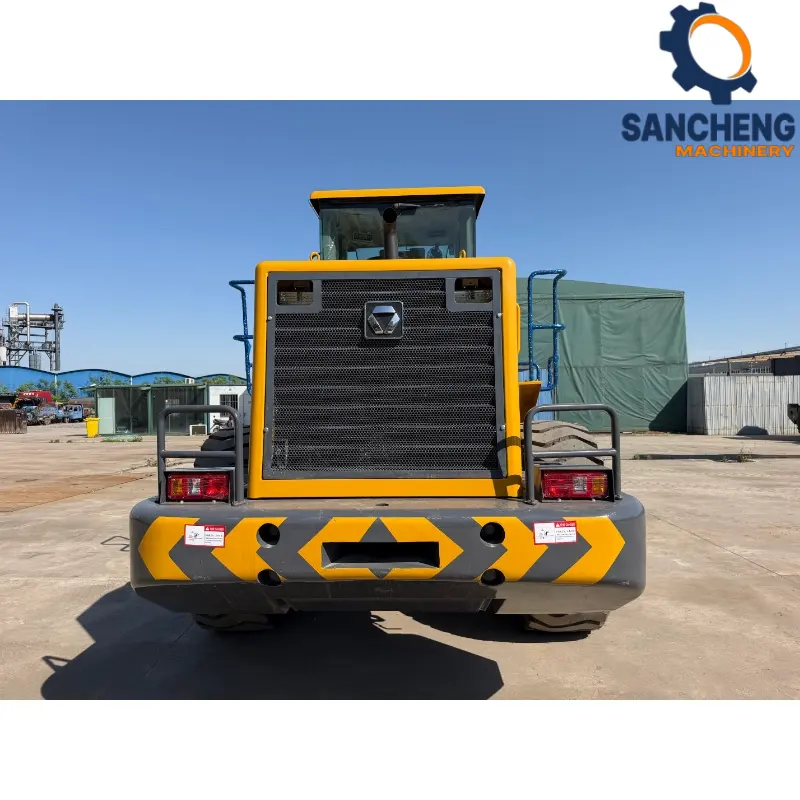

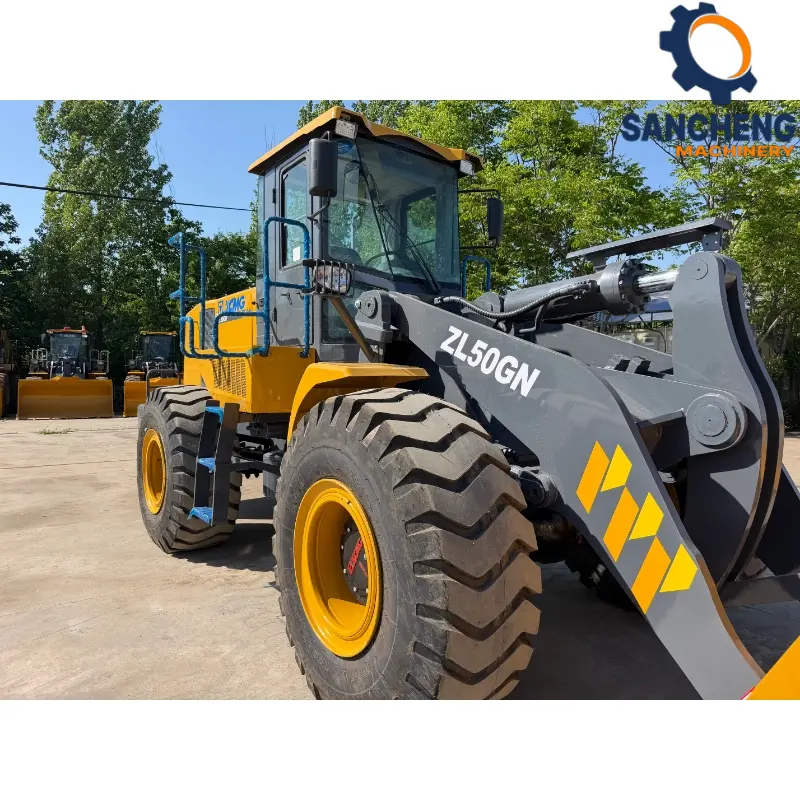

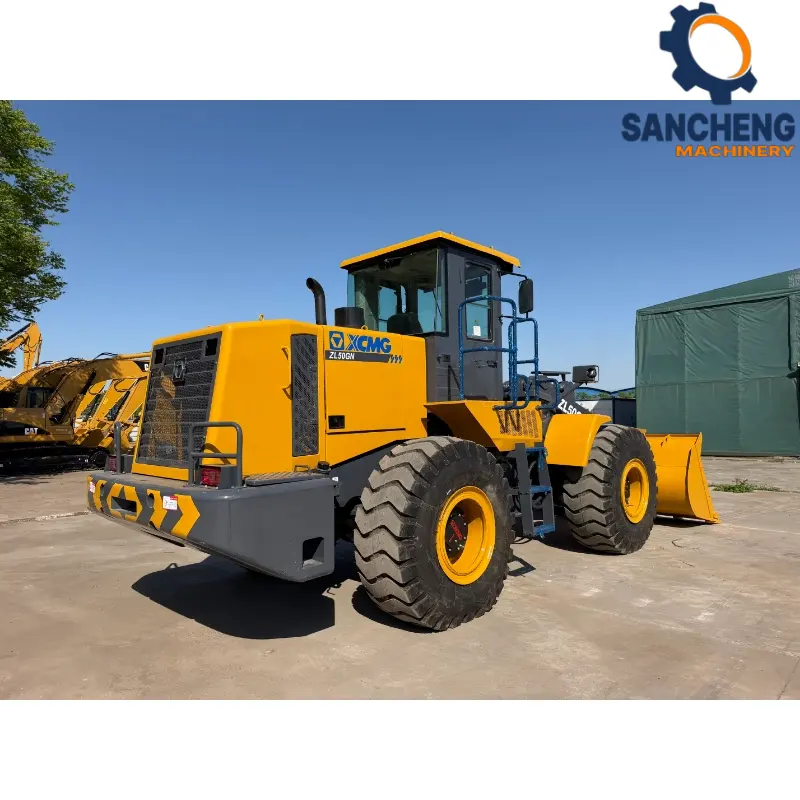

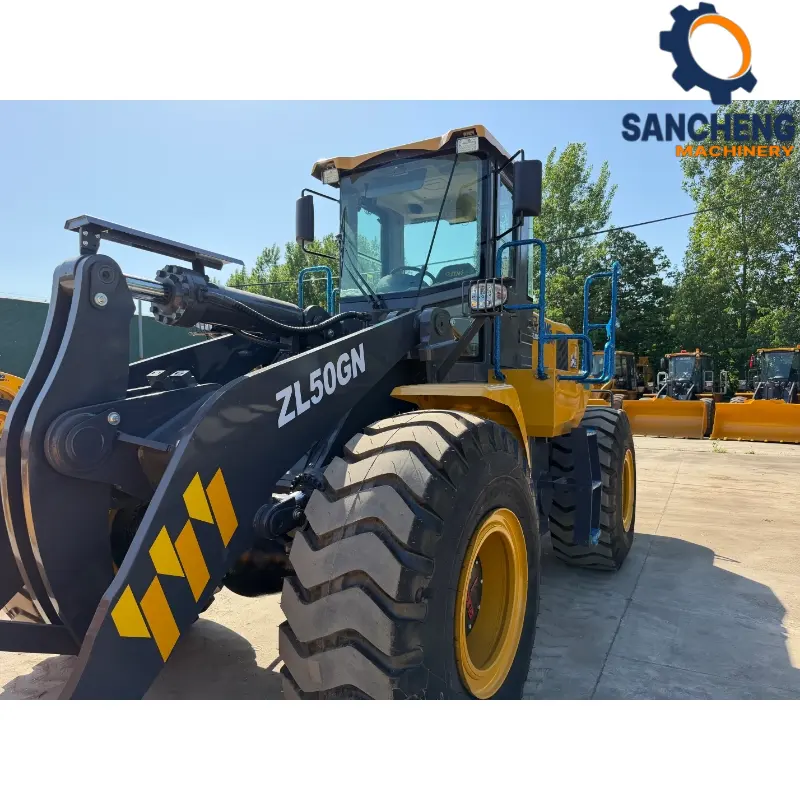

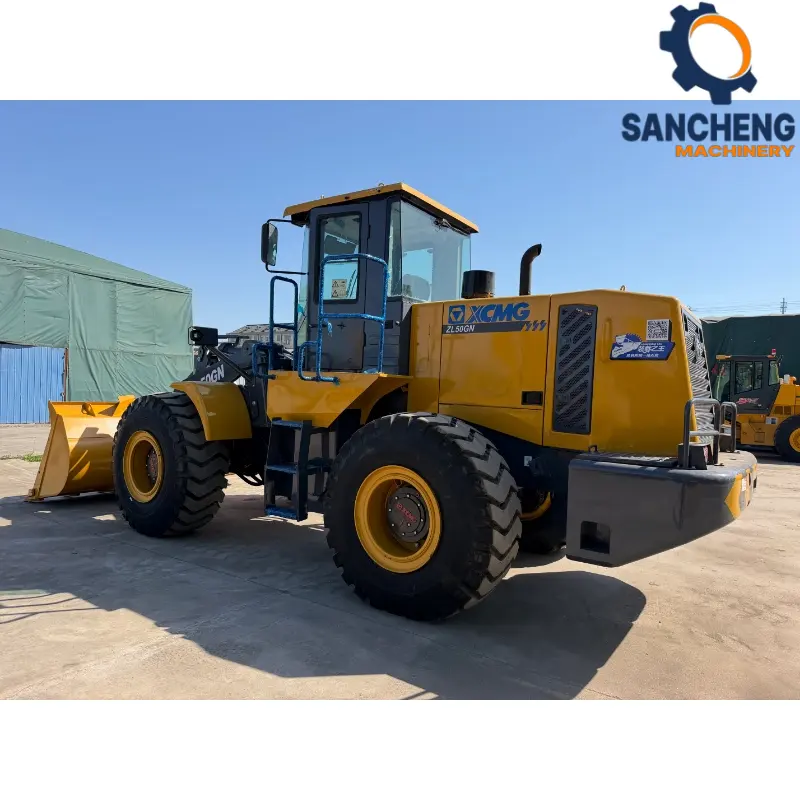

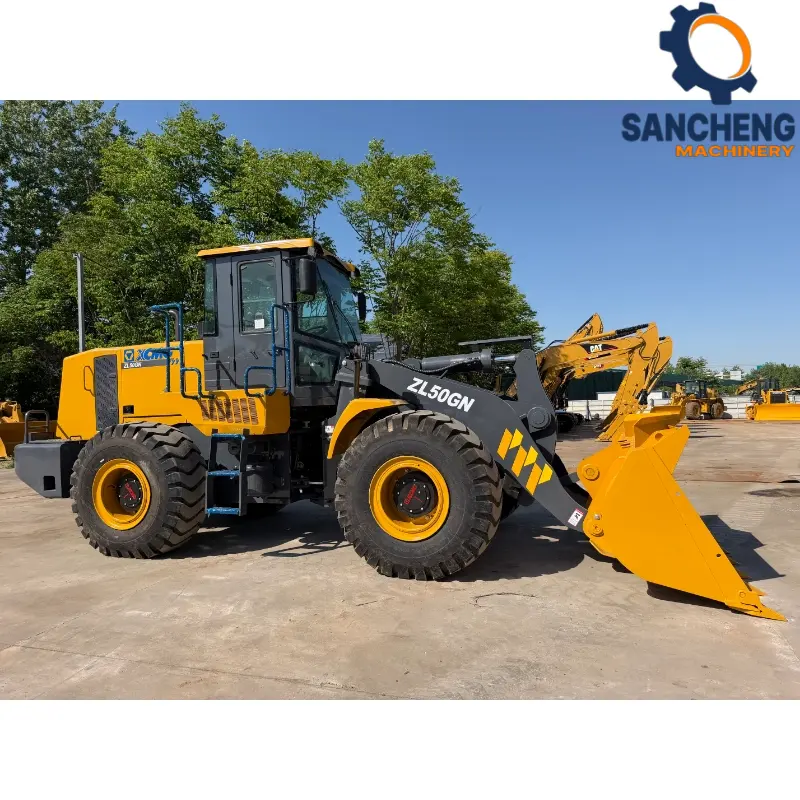

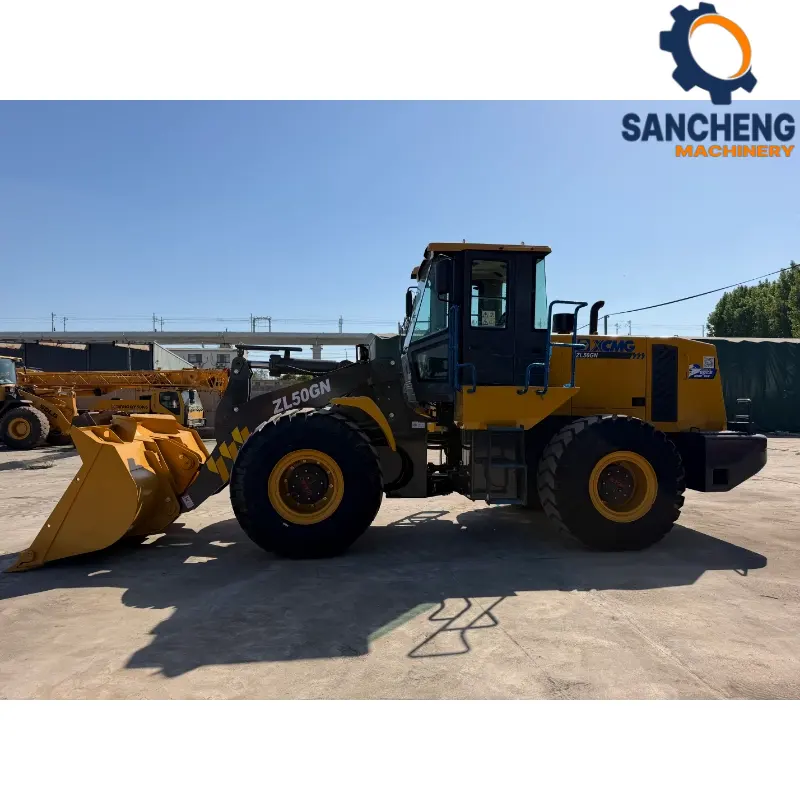

| Model | XCMG ZL50GN |
| Rated Load | 5000 kg |
| Operating Weight | 17500 kg |

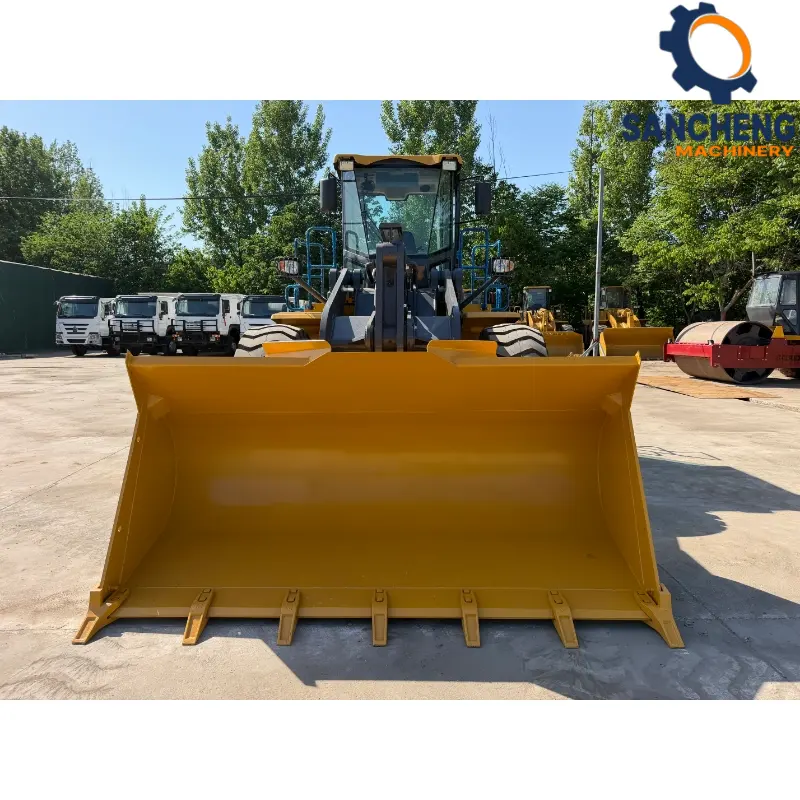

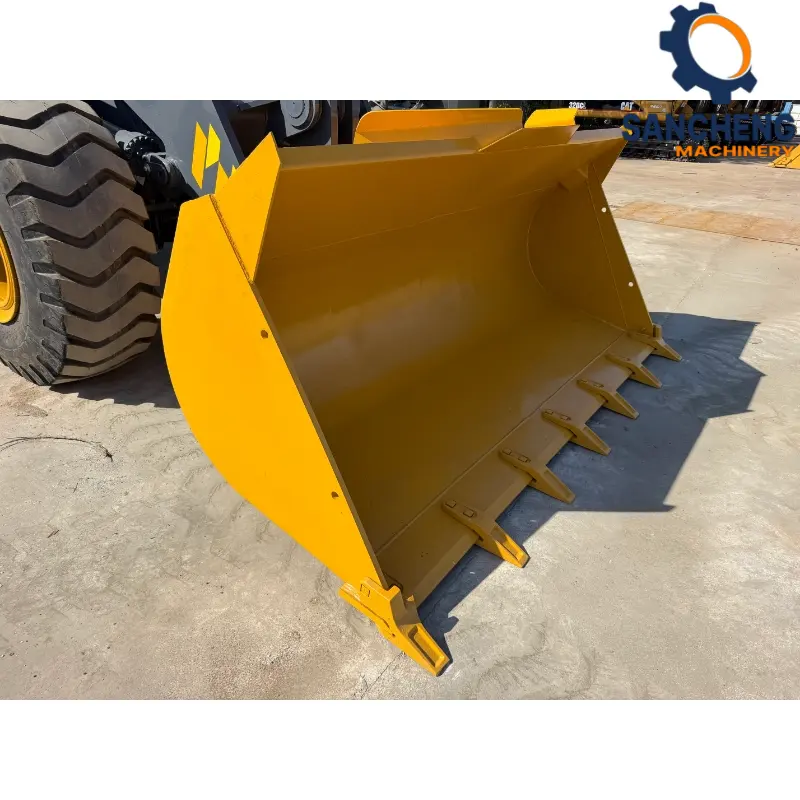

| Bucket Capacity | 5.0 m³ |
| Rated Power | 162 kW / 2000 rpm |

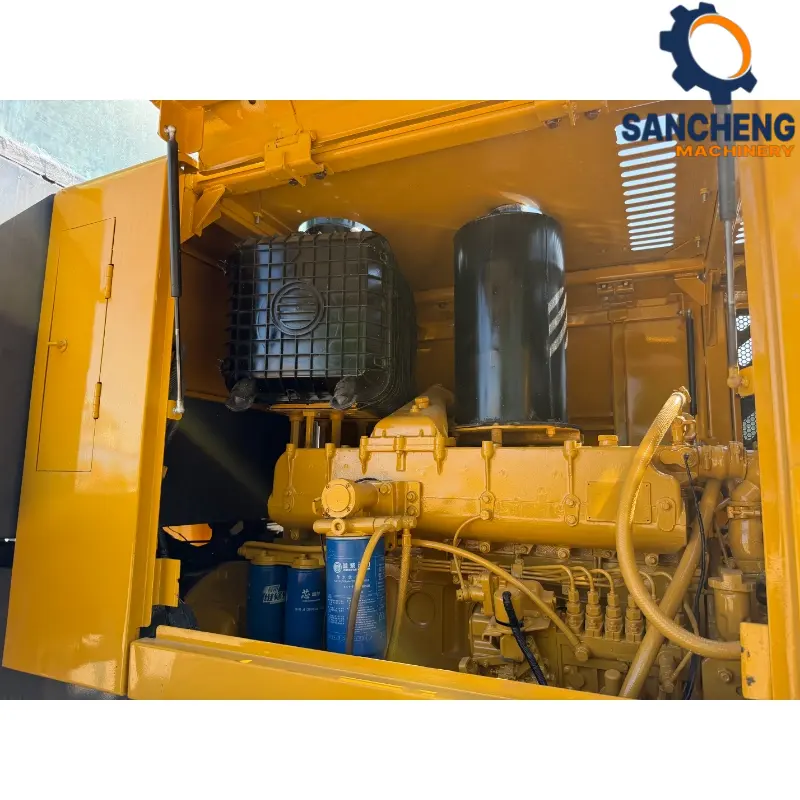

| Engine Model | WD10G220E23 (Weichai) |
| Dimensions & Capacity | |
| Overall Dimensions (L×W×H) | 8780 × 3016 × 3485 mm |
| Wheelbase | 3300 mm |
| Max. Dumping Height | 3720 mm |
| Dumping Reach | 1220 mm |
| Min. Turning Radius | 6400 mm |
| Articulation Angle | ±35° |
| Performance Data | |
| Breakout Force | 165 ~ 170 kN |
| Max. Traction Force | 165 ± 5 kN |
| 3-Point Cycle Time | ≤ 11 s |
| Max. Travel Speed | 38 km/h |
| Gradeability | 30° |
