| General Specifications | |

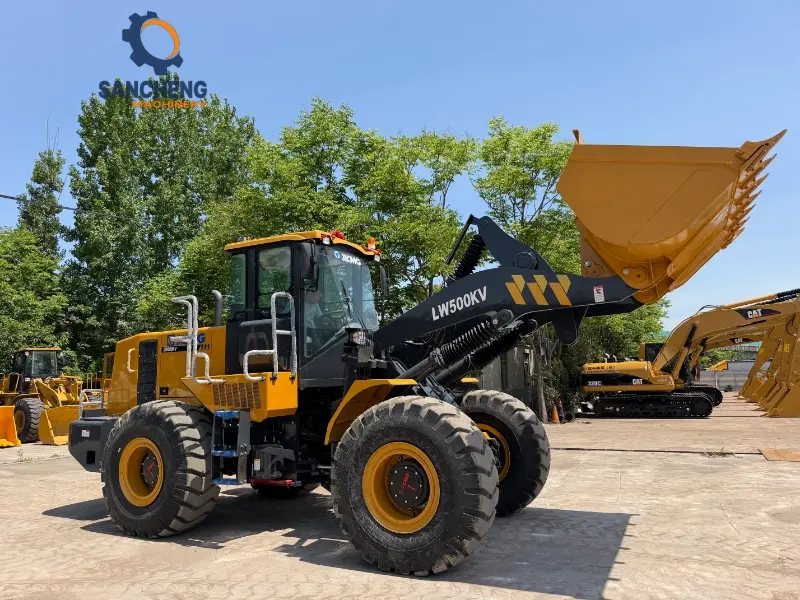

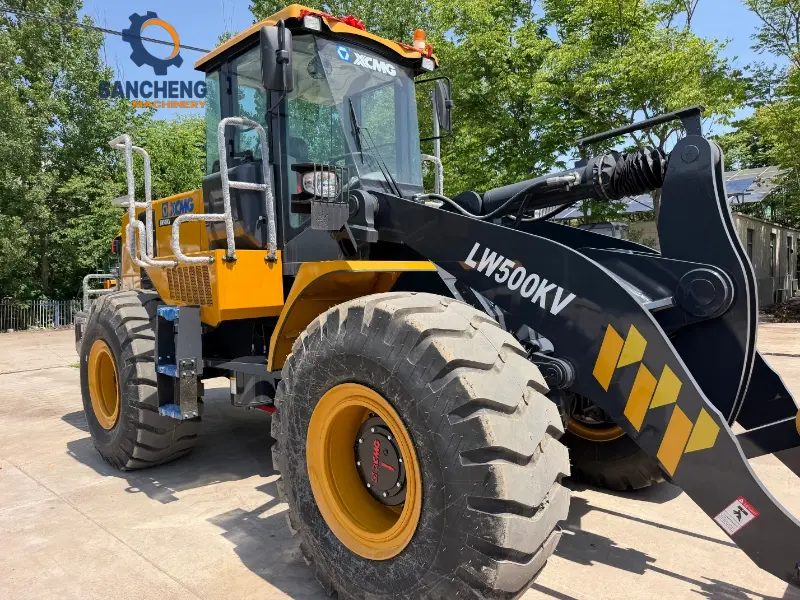

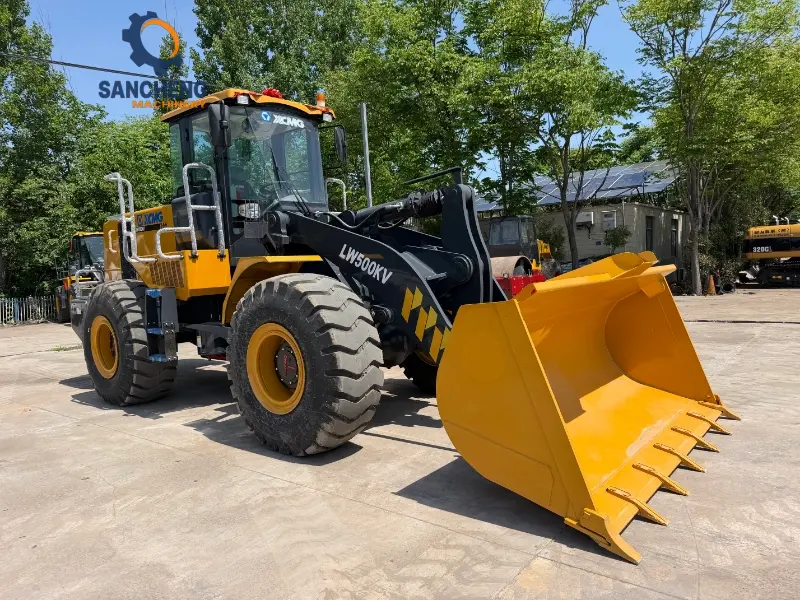

| Model | XCMG LW500KV |
| Rated Load | 5000 kg |
| Operating Weight | 17300 kg |
| Bucket Capacity | 4.5 m³ |
| Rated Power | 162 kW |

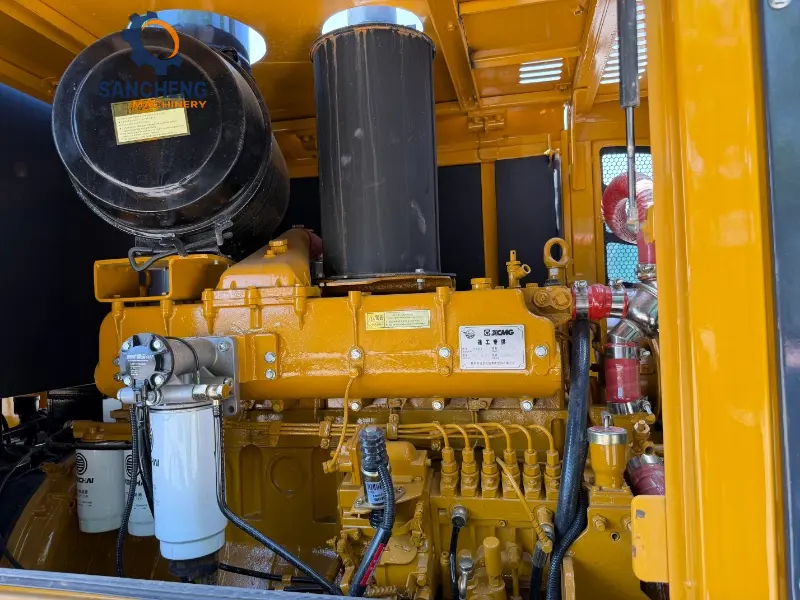

| Engine Model | Weichai |
| Dimensions & Capacity | |
| Overall Dimensions (L×W×H) | 8670 × 2996 × 3515 mm |
| Wheelbase | 3300 mm |
| Max. Dumping Height | 3100 ~ 3780 mm |
| Dumping Reach (at 45°) | 1180 mm |
| Min. Turning Radius | 5925 mm |
| Articulation Angle | 38° |
| Performance Data | |
| Breakout Force | 175 ± 5 kN |
| Max. Traction Force | 155 ± 5 kN |
| 3-Point Cycle Time | ≤ 11 s |
| Transmission | Power Shift, Planetary Gearbox |
