| Overall Specs | |
| Operating Weight | 18200KG |
| Capacity | 6000 kg |
| Bucket Capacity | 3.5 m³ |
| Overall L*W*H | 8,150 *2,940 *3,450 mm |
| Wheelbase | 3,250 mm |

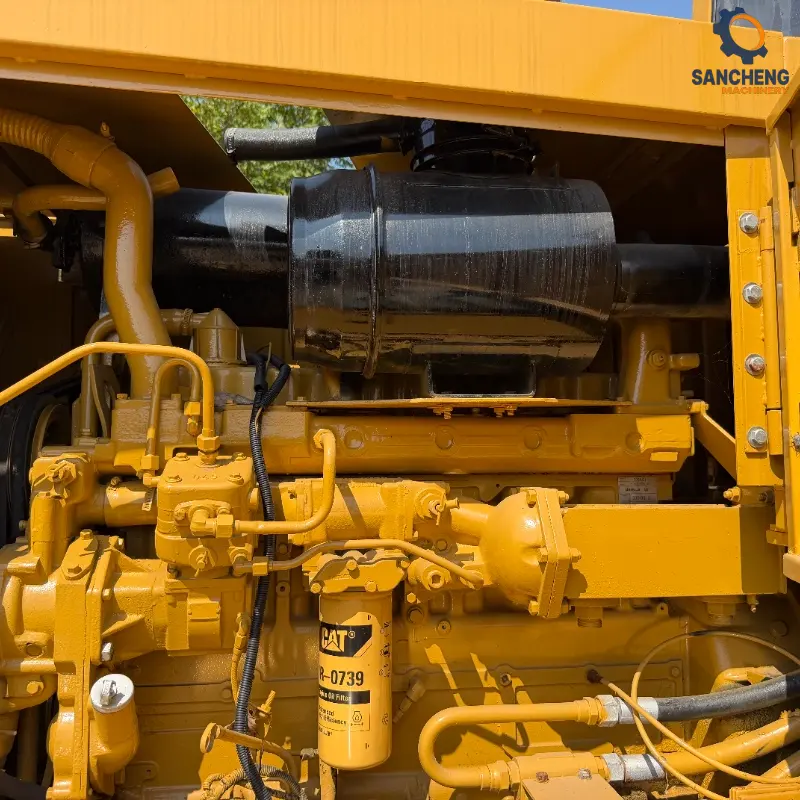

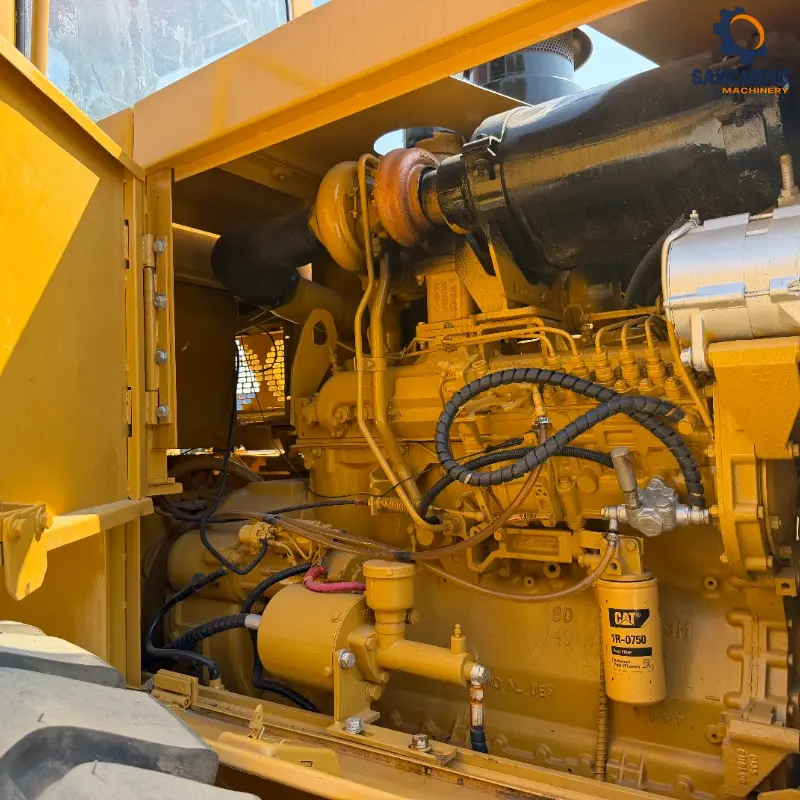

| Engine | |
| Engine Model | Caterpillar 3306 DITA (turbocharged, direct injection) |
| Engine Type | 6-cylinder, 4-stroke, turbocharged diesel |
| Rated Power | 220 HP/164 kW/ @ 2,000 rpm |
| Displacement | 10.5 L |
| Max Torque | 850 N·m |
| Cooling | Water-cooled |
| Hydraulic / Working Device | |
| Hydraulic System Pressure | 20.5 MPa |
| Hydraulic Cylinders | Boom × 2, Bucket × 1 |
| Lift Height | 3,150 mm |
| Dump Clearance | 3,050 mm |
| Breakout Force | 165 kN |
| Cycle Time (Full) | ~10.5 sec |
| Transmission & Drivetrain | |
| Transmission Type | Planetary powershift, 4 forward / 4 reverse |
| Max Travel Speed | 38 km/h |
| Drive Axle | Full-time 4-wheel drive |
| Steering | Articulated frame, hydraulic steering |
| Turning Radius (Outside) | 6,400 mm |
| Tires & Capacities | |

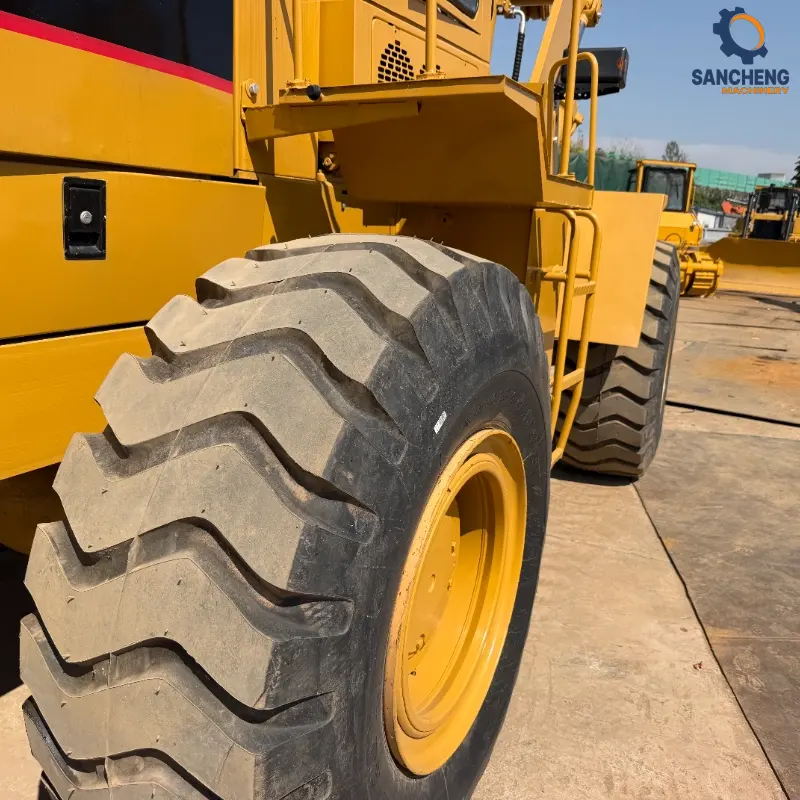

| Tire Size | 23.5-25 (standard) |
| Tire Ply | E-3 / L-3 pattern, optional |
| Fuel Tank | 295 L |
| Hydraulic Tank | 220 L |
| Engine Oil | 24 L |
| Coolant | 38 L |
